DC 12V Booster Beverage Drinking Water Food Grade Diaphragm Pump
About this Food Grade Diaphragm Pumpitem:
Our food grade diaphragm pump is designed for health purpose, it can be widely used for drinking water, beverages, wine, milk,etc. The electric pump has a flow rate 2L to 13 LPM. We also accept the OEM order for the sticker, logo, and packing; please feel free to talk to us.
Product Features:
Made of food hygiene grade ABS, safe, healthy, and non-toxic.
Low noise, easy installation, stable performance.
Pump with self-priming function, very convenient to use.
The rubber bracket can absorb vibration from the pump when working.
Used in pumping red wine, drinking milk, tea, cooking oil, etc.
Technical Data:
|
Model
|
Volt
|
Output
|
Amps
|
Flow (L/M)
|
Suction (M)
|
Max. Pressure (BAR)
|
Working Pressure (BAR)
|
Head of Delivery (M)
|
L*W*H(MM)
|
(KG)
|
|
MST-0342YA
|
12V
|
15W
|
1.25A/12V
|
2
|
2
|
5
|
3
|
40
|
174*96.6*61
|
0.6
|
|
MST-0142YB
|
12V/24V
|
70W
|
5.83A/12V; 2.29A/24V
|
6
|
1.5
|
5
|
3
|
30
|
174.2*97.4*62
|
0.6
|
|
MST-0442YD
|
12V
|
80W
|
6.67A/12V
|
13
|
1.5
|
3
|
1
|
40
|
200.9*97*72.6
|
1.2
|
|
MST-0442YD-B
|
12V
|
40W
|
3.33A/12V
|
12
|
1.5
|
NO
|
NO
|
NO
|
170.5*96.6*64.6
|
0.7
|
Note: The 0442YD-B is without pressure switch design.

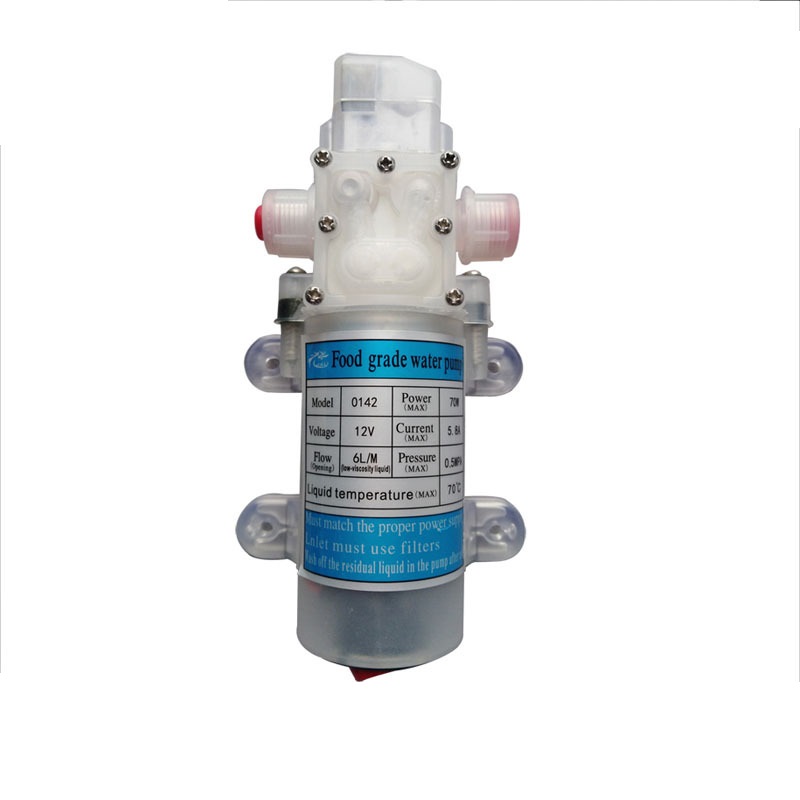

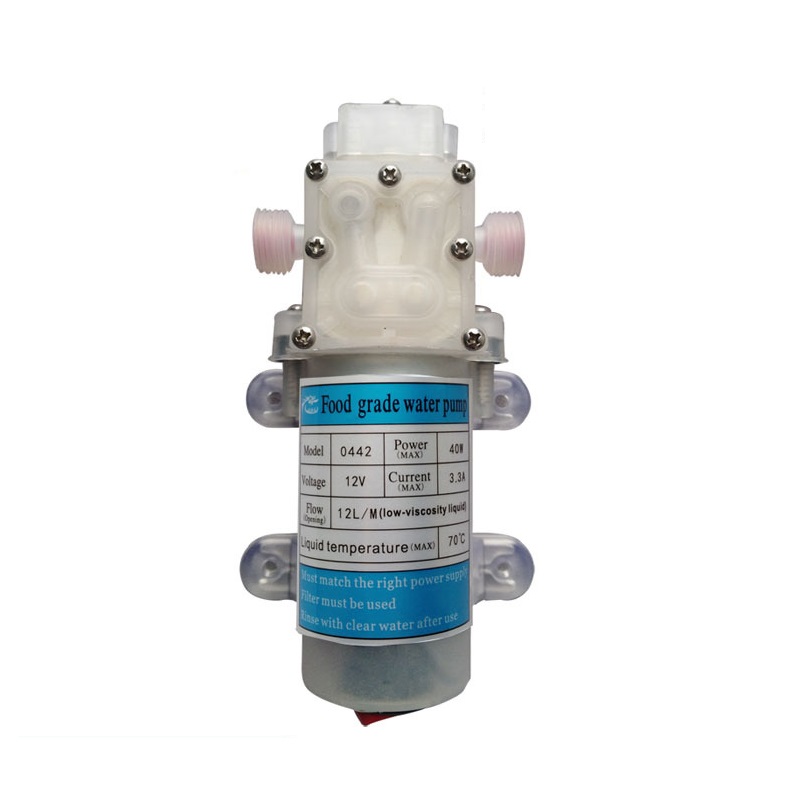

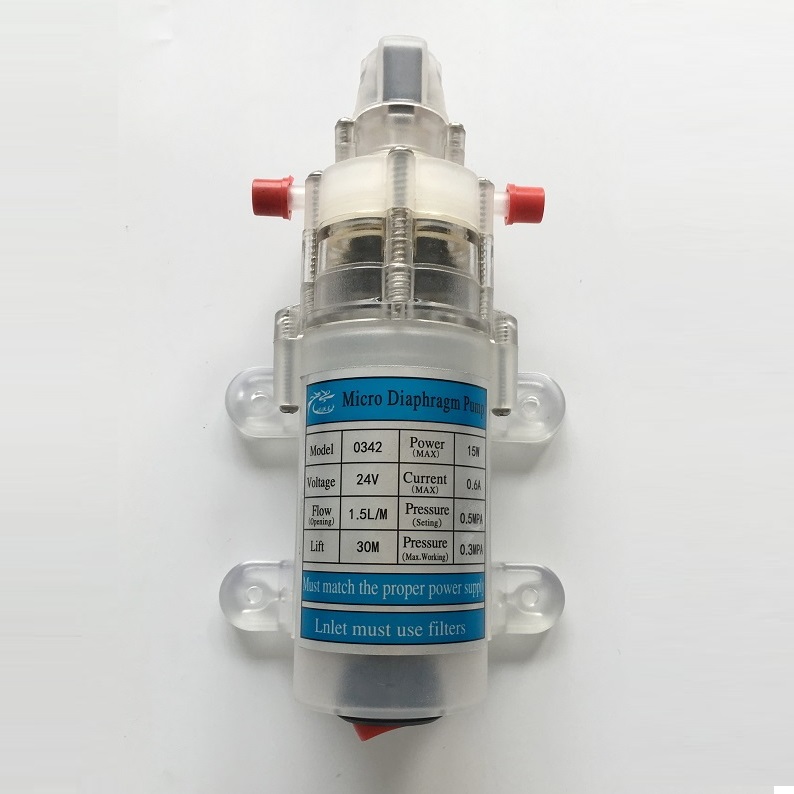

Products display:
Connector size of pump head:
ATTENTION:
*Do not use water or dirty water (silt in dirty water will cause irreversible damage to the pump).
*Non-submersible pumps are not waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water.
*Dry the pump body after use.
*Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time.
*Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump).
*It is strictly forbidden to use this machine without the filter, and the density of the filter should be above 80 mesh (impurities will cause damage to the pump).
The diameter of the spray hole must meet the specified value; otherwise, the water pump will be damaged.
Please confirm the power supply before use; the power supply parameters must be consistent with the pump input parameters
